End-of-line measurement of color tone, structure and layer thickness


End-of-line measurement of color tone, texture and layer thickness

Measuring cell

Our system makes it much easier to achieve the optimal color match, as well as the desired surface finish and quality. With which we can ensure the optimal as well as the best possible painting result.

Through this system, we are able to significantly increase the number of tested parts or even car bodies.

There are various reasons for automated measurement:

  • Attachment parts have many and large area interfaces with the car bodies
  • Uniform appearance of color and texture
  • Off-line painting of add-on parts requires maximum cooperation between the supplier and the OEM
  • Manual measurement leads to high labor costs and inaccuracies
  • Reproducibility of measurements
  • Higher quality of products
  • High process reliability in the delivery of attachments



  • High quality of measurement data due to reproducibility of measurements compared to manual process

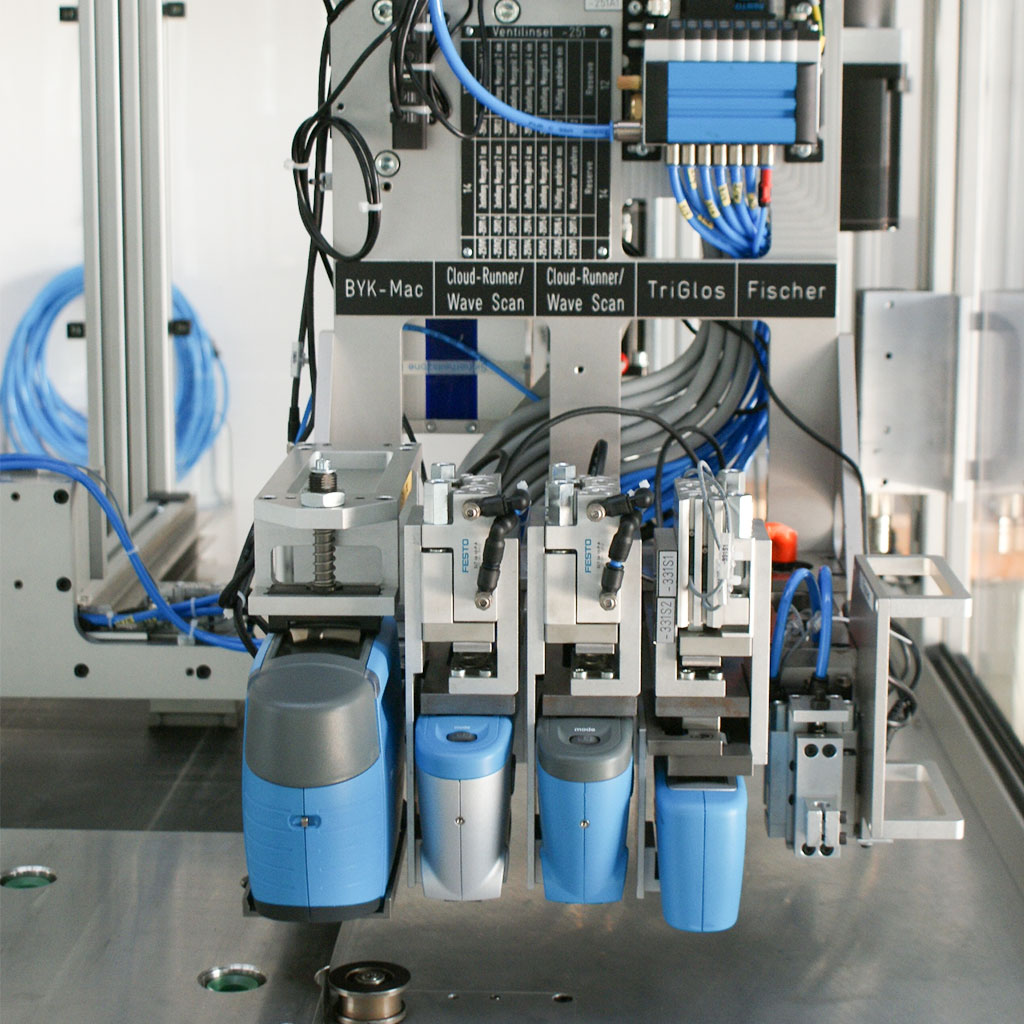

  • Equipped with systems for coating thickness, color tone and structure measurement
  • Automated data storage of the different measurement systems
  • Providing data for statistics and process optimization

Complete solutions from a single source

We are looking forward to your request.

I have taken note of the data-privacy. I consent to my information and data being collected and stored electronically in order to respond to my inquiry. Note: You can revoke your consent at any time for the future by e-mail to

* These fields are required.

Technical data

Measurement Color-Match:
BYK-mac-i Robotic
Wave-Scan Robotic
Layer thickness:
Robotic Pelt

Measurement monitoring and evaluation

  • Display butterfly image
  • Display of measured values
  • Simple statistics and process evaluation
  • .


By loading the video, you agree to YouTube's privacy policy.
Learn more

Load video


Full program from a single source

ASIS GmbH offers the seamless integration of automatic measurement.

Due to our broad portfolio and our competence in automation and process technology, we are your contact as JV during the entire project.
